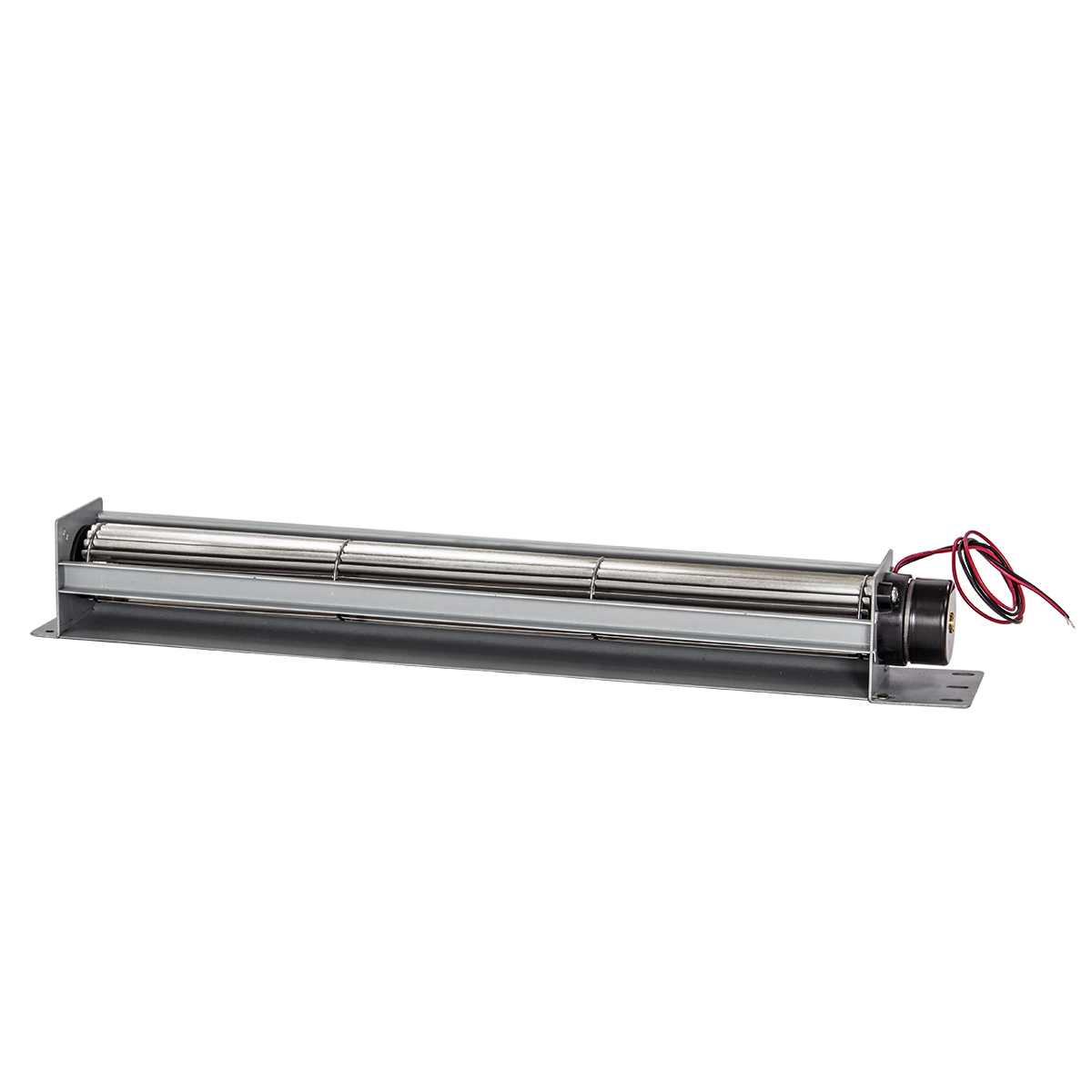

DF30A

Size:Ø30mm(Ø1.18")

0%

	Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	MAX. AIR PRESSURE		MAX. AIR FLOW		NOISE dB(A) @1M	QTY.
	Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	inchH2O	mmH2O	CFM	m3/min	NOISE dB(A) @1M	QTY.
	DF30098V12HBA	12	0.15	1.8	3200	0.08	1.9	21	0.6	29
	DF30160V12HBA	12	0.18	2.16	3100	0.07	1.7	28	0.8	30
	DF30198V12HBA	12	0.2	2.4	2900	0.06	1.6	35	1	31
	DF30300V12HBA	12	0.22	2.64	2600	0.06	1.5	49	1.3	33
	DF30098V24HBA	24	0.15	3.6	3200	0.08	1.9	21	0.6	29
	DF30160V24HBA	24	0.16	3.84	3100	0.07	1.7	28	0.8	30
	DF30198V24HBA	24	0.16	3.84	2900	0.06	1.6	35	1	31
	DF30300V24HBA	24	0.2	4.8	2600	0.06	1.5	49	1.3	33

*The price is only for sample. Each item price is negotiable if the quantity is large.
The currency is USD.
The delivery fee is not included in the unit price.
