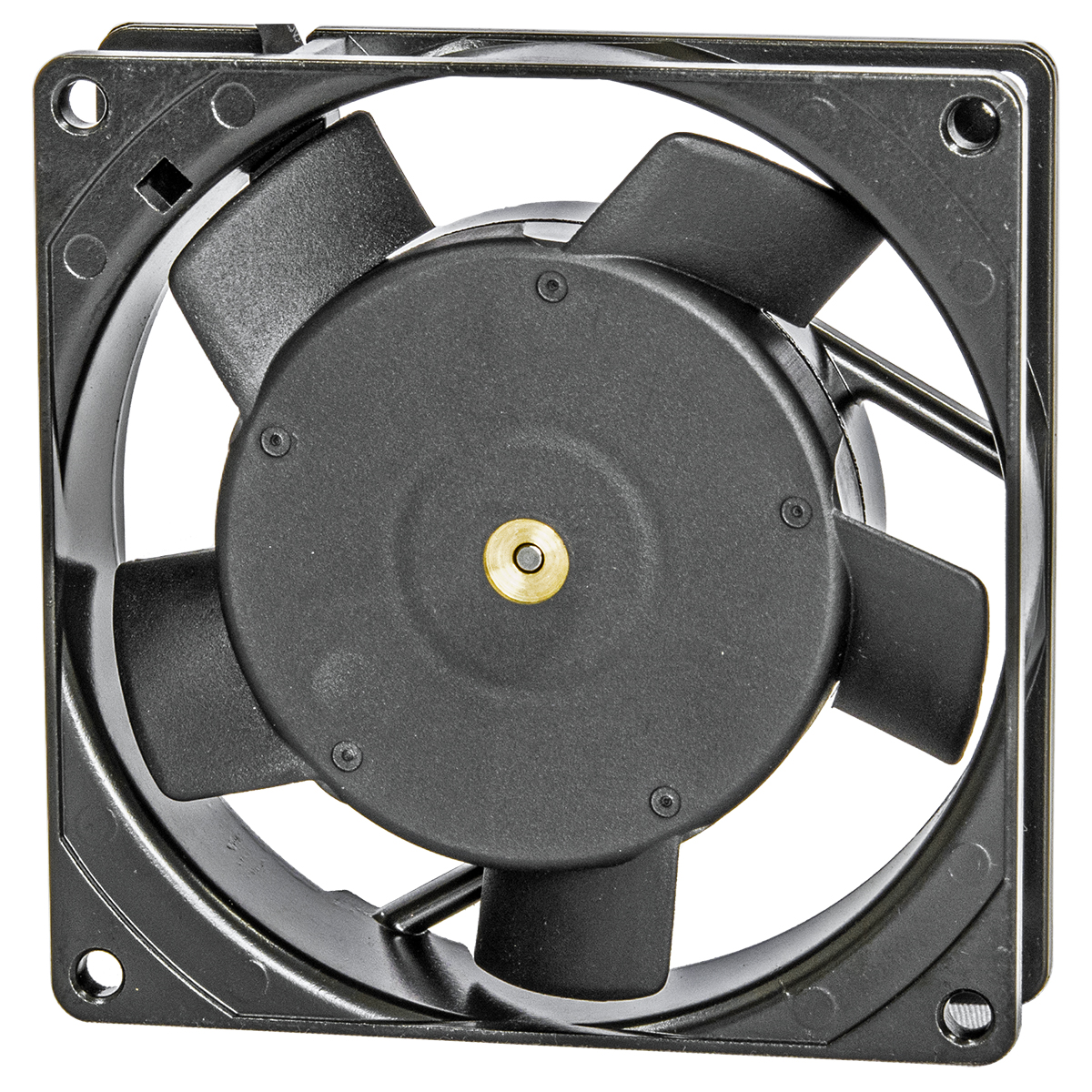

A9225-F

Size:92x92x25mm(3.62"x3.62"x1")

*Special voltage of the fan can be customized

A9225-F .pdf

A9225-F3D Object

Model No.	RATED VOLTAGE (V)	FREQUENCY (Hz)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	MAX. AIR PRESSURE		MAX. AIR FLOW		NOISE dB(A) @1M	Sample Price	QTY.
Model No.	RATED VOLTAGE (V)	FREQUENCY (Hz)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	inchH2O	mmH2O	CFM	m3/min	NOISE dB(A) @1M	Sample Price	QTY.
A9225V1H-F	115	50/60	0.15/0.12	14/11	2500/3000	0.15/0.21	3.8/5.3	33/40	0.93/1.13	32/36	12.03
A9225V1L-F	115	50/60	0.14/0.11	14/11	1800/2300	0.10/0.16	2.5/4.0	20/25	0.55/0.70	28/32	12.03
A9225V2H-F	230	50/60	0.08/0.07	16/14	2500/3000	0.17/0.24	4.2/6.1	33/40	0.93/1.13	32/36	12.03
A9225V2L-F	230	50/60	0.07/0.06	16/14	1800/2300	0.07/0.13	1.8/3.3	23/31	0.65/0.88	28/32	12.03

*The price is only for sample. Each item price is negotiable if the quantity is large.
The currency is USD.
The delivery fee is not included in the unit price..
