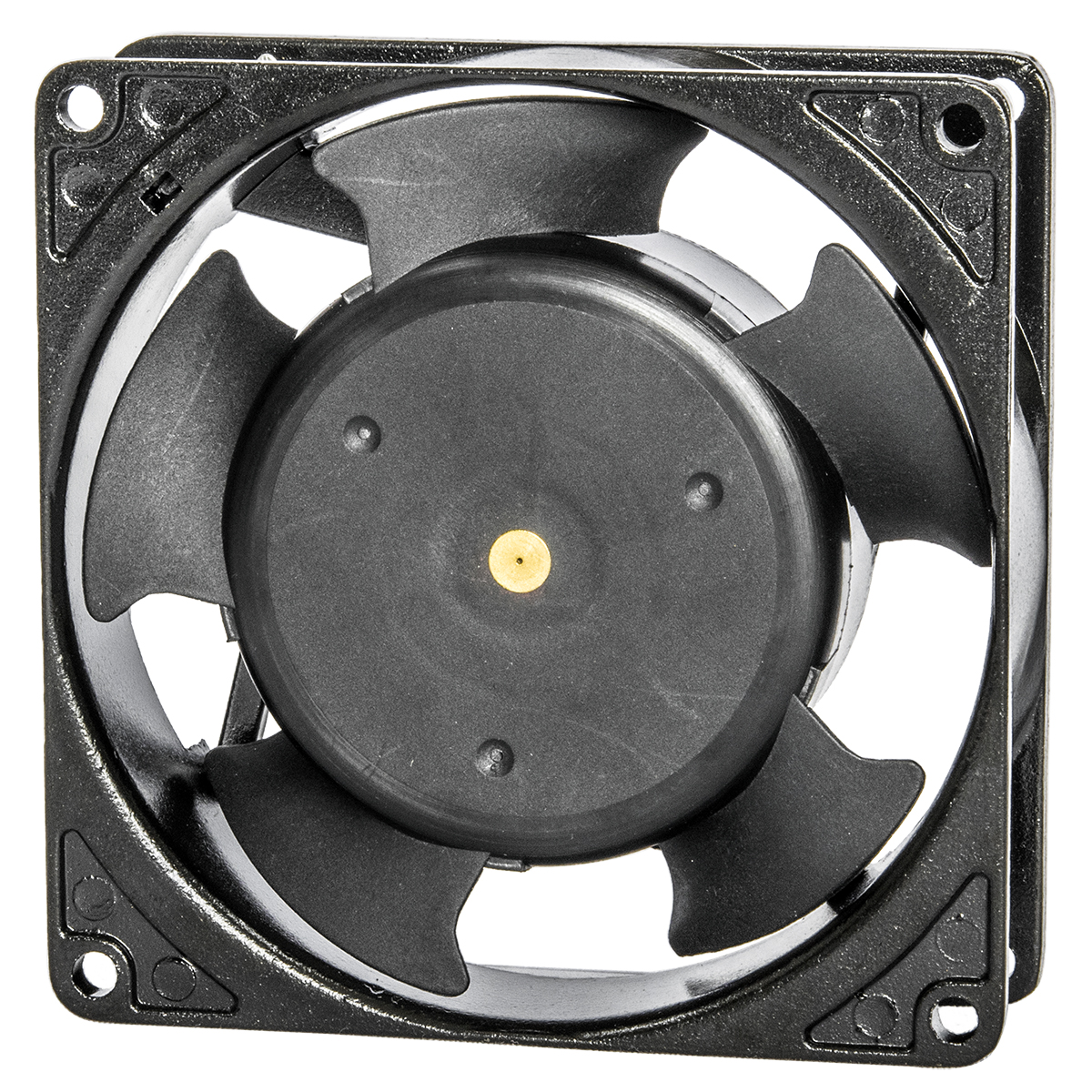

A9225-S

Size:92x92x25mm(3.62"x3.62"x1")



    A9225-S .pdf

    A9225-S3D Object







    Model No. RATED
    VOLTAGE
    (V)    		 FREQUENCY
    (Hz)    		 RATED
    CURRENT
    (A)    		 INPUT
    POWER
    (W)    		 SPEED
    (RPM)    		 MAX. AIR PRESSURE MAX. AIR FLOW NOISE dB(A)
    @1M    		 Sample Price QTY.
    inchH2O mmH2O CFM m3/min
    		A9225V24H-S 24 50/60 0.64/0.58 12.9/11.4 2400/2900 0.11/0.13 2.80/3.50 24/28 0.68/0.79 30 8.01
    		A9225V1H-S 115 50/60 0.18/0.16 18/15 2500/3000 0.11/0.13 2.80/3.50 24/28 0.68/0.79 30 8.01
    		A9225V1M-S 115 50/60 0.08/0.07 8.3/7.9 2100/2300 0.08/0.08 2.23/2.22 21.4/22.1 0.60/0.62 22 8.01
    		A9225V1L-S 115 50/60 0.06/0.05 6.0/5.9 1700/1750 0.06/0.06 1.75/1.61 17.6/16.8 0.50/0.47 19 8.01
    		A9225V2H-S 230 50/60 0.09/0.08 15/13 2500/3000 0.11/0.13 2.80/3.50 24/28 0.68/0.79 30 8.01
    		A9225V2M-S 230 50/60 0.04/0.03 7.5/7.0 2100/2300 0.08/0.08 2.23/2.22 21.4/22.1 0.60/0.62 22 8.01
    		A9225V2L-S 230 50/60 0.03/0.03 6.8/6.0 1650/1850 0.06/0.06 1.75/1.61 17.6/16.8 0.50/0.47 19 8.01

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price..
