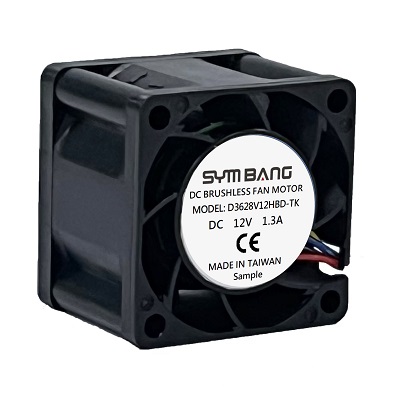

D3628D-TK

Size:36x36x28mm(1.41"x1.41"x1.1")

Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	MAX. AIR PRESSURE		MAX. AIR FLOW		NOISE dB(A) @1M	QTY.
Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	inchH2O	mmH2O	CFM	m3/min	NOISE dB(A) @1M	QTY.
D3628V12HD-TK	12	1.3	15.6	24000	2.58	65.5	22.7	0.64	64.1
D3628V24HD-TK	24	0.65	15.6	24000	2.58	65.5	22.7	0.64	64.1

*The price is only for sample. Each item price is negotiable if the quantity is large.
The currency is USD.
The delivery fee is not included in the unit price.
