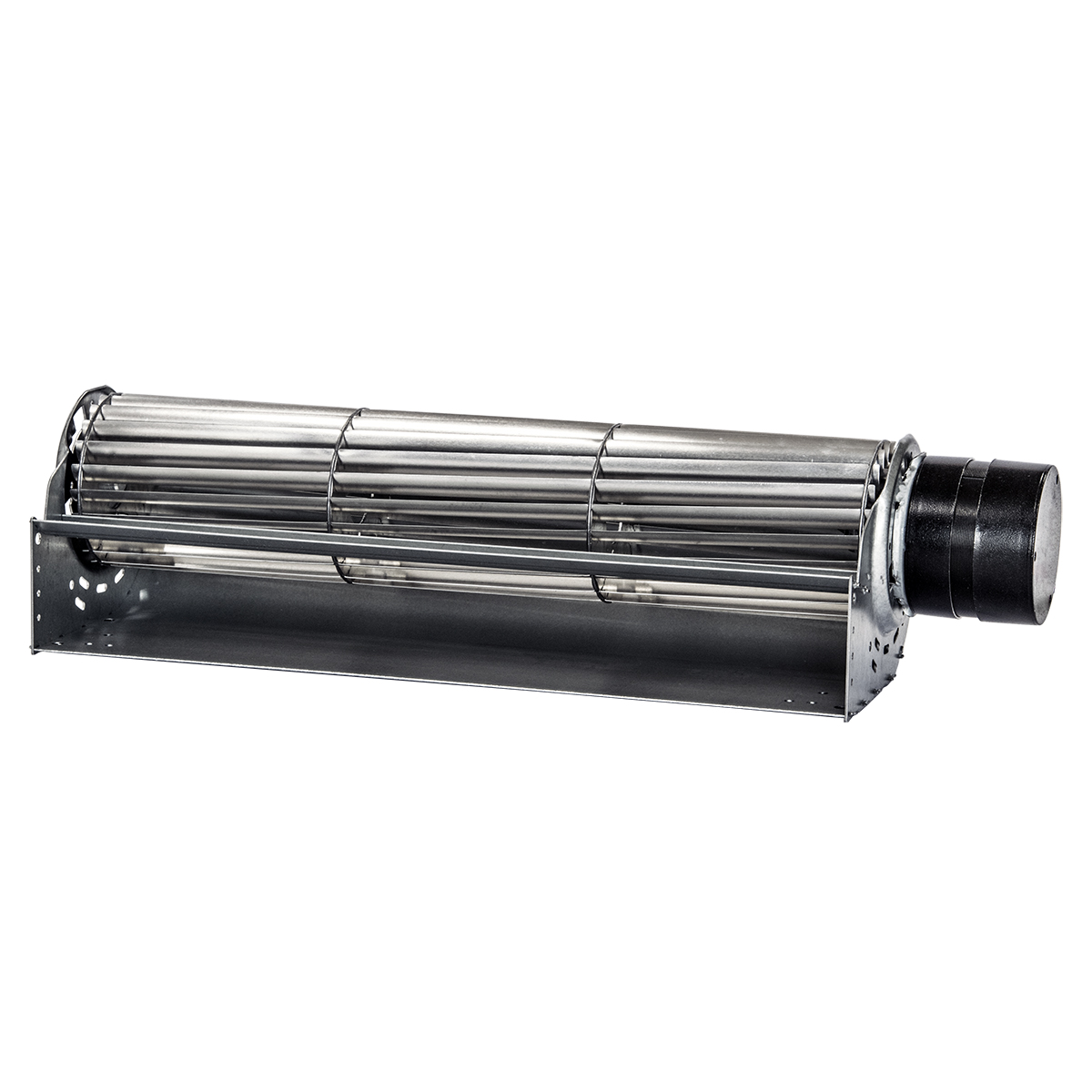

DFG65-3P

Size:Ø65mm(Ø2.56")

Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	MAX. AIR PRESSURE		MAX. AIR FLOW		NOISE dB(A) @1M	QTY.
Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	inchH2O	mmH2O	CFM	m3/min	NOISE dB(A) @1M	QTY.
DFG65180V24HB-3P	24	0.20	4.80	1400	0.110	2.8	77.74	2.2	34
DFG65240V24HB-3P	24	0.23	5.52	1300	0.106	2.7	102.47	2.9	35
DFG65300V24HB-3P	24	0.27	6.48	1250	0.102	2.6	134.28	3.8	36
DFG65360V24HB-3P	24	0.29	6.96	1200	0.094	2.4	155.48	4.4	38
DFG65420V24HB-3P	24	0.32	7.68	1150	0.091	2.3	180.21	5.1	37

*The price is only for sample. Each item price is negotiable if the quantity is large.
The currency is USD.
The delivery fee is not included in the unit price.
