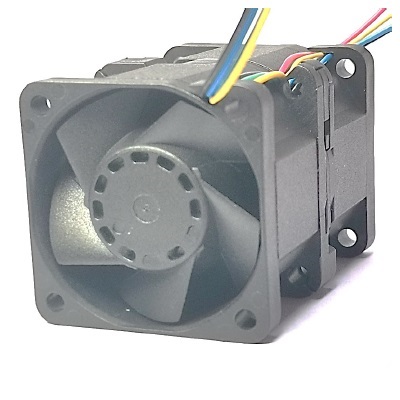

D4056-GF

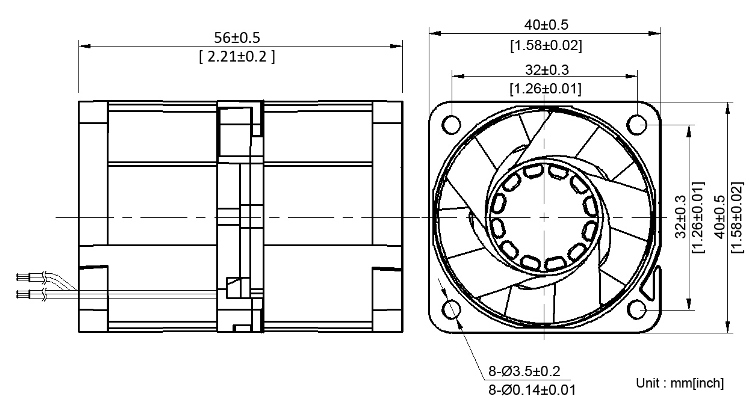

Size:40x40x56mm(1.57"x1.57"x2.2")

Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	MAX. AIR PRESSURE		MAX. AIR FLOW		NOISE dB(A) @1M	QTY.
Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	inchH2O	mmH2O	CFM	m3/min	NOISE dB(A) @1M	QTY.
D4056V12H-GF	12	3.00	36.0	30500/28000	8.86	225.0	37.3	1.06	71.3
D4056V12M-GF	12	2.80	33.6	29000/26000	8.10	205.69	35.0	0.99	69.4
D4056V12LB-GF	12	2.60	31.2	28000/25000	7.68	195.0	33.6	0.95	68.4

*The price is only for sample. Each item price is negotiable if the quantity is large.
The currency is USD.
The delivery fee is not included in the unit price.

IMPELLER
BEARING
INSULATION
TERMINATION
OPERATING TEMPERATURE
DIELECTRIC STRENGTH
MOTOR TYPE
SAFETY
WEIGHT
ROHS COMPLIANCE
IP LEVEL

Thermoplastic PBT, UL94V-0
Ball
Class A
Lead Wire
-10°C to +70°C
5mA Max. at 500 VAC for 1 minute
DC Brushless Fan Motor
Locked Rotor Protection and Polarity Protection
99 g
Yes
Special IP Rating On Request
