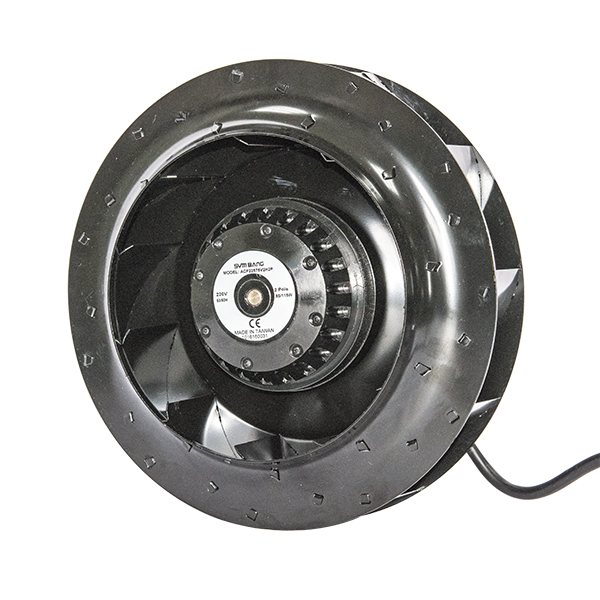

ACF22575~100

Size:Ø225x75~100mm, 2 poles&4 poles(Ø8.86"x2.95"~3.94")



    ACF22575~100 .pdf

    ACF22575~1003D Object





    Model No. RATED
    VOLTAGE
    (V)    		 FREQUENCY
    (Hz)    		 RATED
    CURRENT
    (A)    		 INPUT
    POWER
    (W)    		 SPEED
    (RPM)    		 MAX. AIR PRESSURE MAX. AIR FLOW NOISE dB(A)
    @1M    		 QTY.
    inchH2O mmH2O CFM m3/min
    		ACF22575V1H2P 110 60 1.05 115 2925 2.37 60.18 512 14.5 72
    		ACF22575V2H2P 220 50/60 0.38/0.53 85/115 2650/2925 2.19/2.37 55.59/60.18 488/512 13.83/14.50 70/72
    		ACF22575V1H4P 110 60 0.38 40 1700 0.86 21.73 324 9.17 58
    		ACF22575V2H4P 220 50/60 0.14/0.19 30/40 1440/1700 0.60/3.55 15.30/21.73 259/323 7.33/9.17 57/58
    		ACF225100V1H2P 110 60 1.9 200 2900 3.01 76.5 618 17.5 75
    		ACF225100V2H2P 220 50/60 0.65/0.92 140/200 2620/2870 2.45/3.01 62.22/76.50 576/617 16.33/17.50 71/75
    		ACF225100V1H4P 110 60 0.52 55 1650 0.92 23.26 394 11.17 59
    		ACF225100V2H4P 220 50/60 0.25/0.26 50/55 1400/1650 0.62/0.92 15.81/23.26 347/394 9.83/11.17 55/59

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price.
