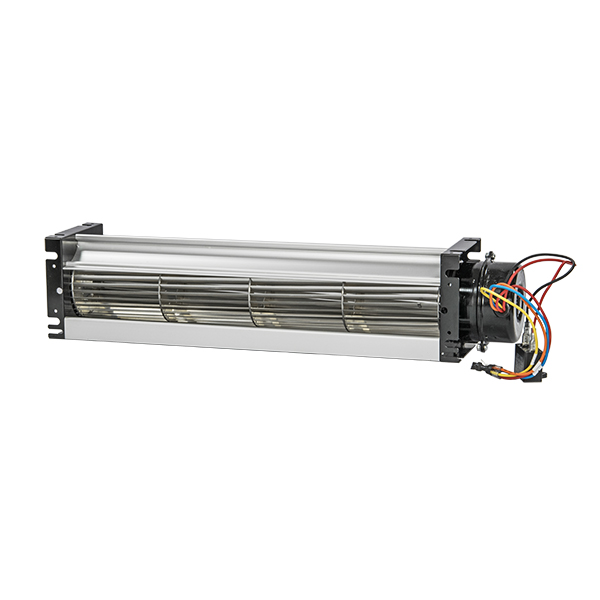

AFC81

Size:Ø81mm(Ø3.19")



    AFC81 .pdf

    AFC813D Object





    Model No. RATED
    VOLTAGE
    (V)    		 FREQUENCY
    (Hz)    		 RATED
    CURRENT
    (A)    		 INPUT
    POWER
    (W)    		 SPEED
    (RPM)    		 MAX. AIR PRESSURE MAX. AIR FLOW NOISE dB(A)
    @1M    		 QTY.
    inchH2O mmH2O CFM m3/min
    		AFC81420DVHB 120 50/60 0.25/0.29 26/31 1300/1450 0.05/0.07 1.3/1.8 183/204 5.2/5.8 44/47
    		AFC81420DVHB 230 50/60 0.14/0.16 27/31 1300/1350 0.05/0.07 1.3/1.8 183/194 5.2/5.5 44/46
    		AFC81500DVHB 120 50/60 0.25/0.29 27/32 1300/1400 0.06/0.07 1.4/1.9 233/251 6.6/7.1 44/46
    		AFC81500DVHB 230 50/60 0.15/0.16 27/32 1250/1300 0.05/0.07 1.3/1.8 223/233 6.3/6.6 43/44
    		AFC81600DVHB 120 50/60 0.33/0.37 35/41 1250/1300 0.06/0.07 1.4/1.8 261/279 7.4/7.9 45/46
    		AFC81600DVHB 230 50/60 0.18/0.20 35/40 1200/1200 0.05/0.07 1.3/1.8 257/257 7.3/7.3 44/44
    		AFC81700DVHB 120 50/60 0.34/0.38 36/42 1250/1250 0.05/0.06 1.2/1.6 300/300 8.5/8.5 45/45
    		AFC81700DVHB 230 50/60 0.19/0.21 36/40 1150/1100 0.05/0.06 1.2/1.5 279/272 7.9/7.7 43/42

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price.
