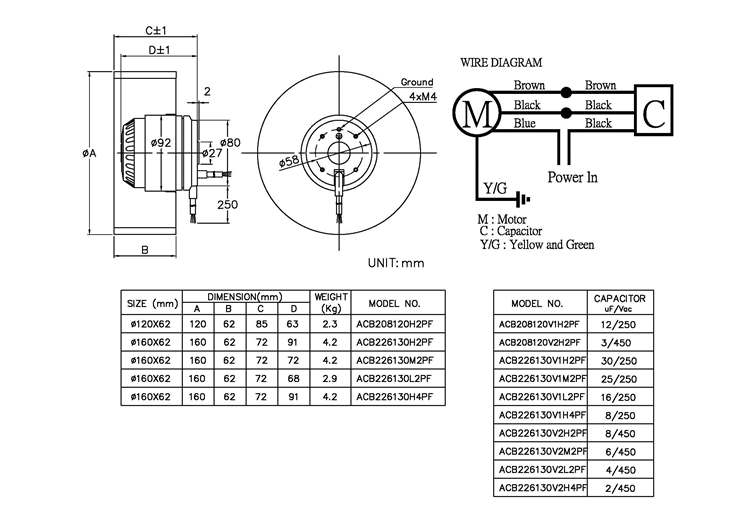

ACB208~226 MOTORIZED IMPELLER

Size:Ø120x62, Ø160x62(Ø4.72"x2.44",Ø6.30"x2.44")



    ACB208~226 MOTORIZED IMPELLER .pdf





    Model No. RATED
    VOLTAGE
    (V)    		 FREQUENCY
    (Hz)    		 RATED
    CURRENT
    (A)    		 INPUT
    POWER
    (W)    		 SPEED
    (RPM)    		 QTY.
    		ACB208120V1H2PF 110 60 0.94 103 2010
    		ACB208120V2H2PF 220 50/60 0.34/0.47 74/102 2100/2080
    		ACB226130V1H2PF 110 60 2.6 283 2200
    		ACB226130V1M2PF 110 60 2.11 231 2060
    		ACB226130V1L2PF 110 60 1.62 212 1980
    		ACB226130V1H4PF 110 60 0.47 84.9 1400
    		ACB226130V2H2PF 220 50/60 0.92/1.30 196/283 2190/2200
    		ACB226130V2M2PF 220 50/60 0.78/1.06 171/231 2140/2060
    		ACB226130V2L2PF 220 50/60 0.60/0.81 158/212 2075/1980
    		ACB226130V2H4PF 220 50/60 0.26/0.37 58/58 1300/1400

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price.
