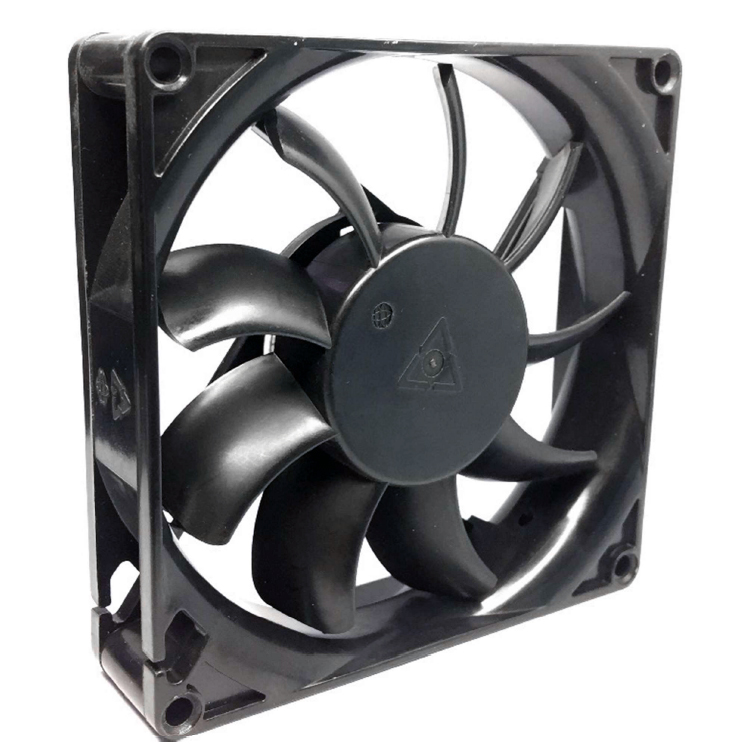

D10025-GF

Size:100x100x25mm(3.9"x3.9"x0.98")

Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	MAX. AIR PRESSURE		MAX. AIR FLOW		NOISE dB(A) @1M	QTY.
Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	inchH2O	mmH2O	CFM	m3/min	NOISE dB(A) @1M	QTY.
D10025V12H-GF	12	0.70	8.4	3300	0.205	5.20	107.63	3.046	43.6
D10025V12M-GF	12	0.55	6.6	2800	0.172	4.37	88.55	2.506	40.6
D10025V12L-GF	12	0.45	5.4	2400	0.131	3.32	77.15	2.183	35.7
D10025V12XL-GF	12	0.25	3.0	2000	0.093	2.37	64.48	1.825	31.1

*The price is only for sample. Each item price is negotiable if the quantity is large.
The currency is USD.
The delivery fee is not included in the unit price.
