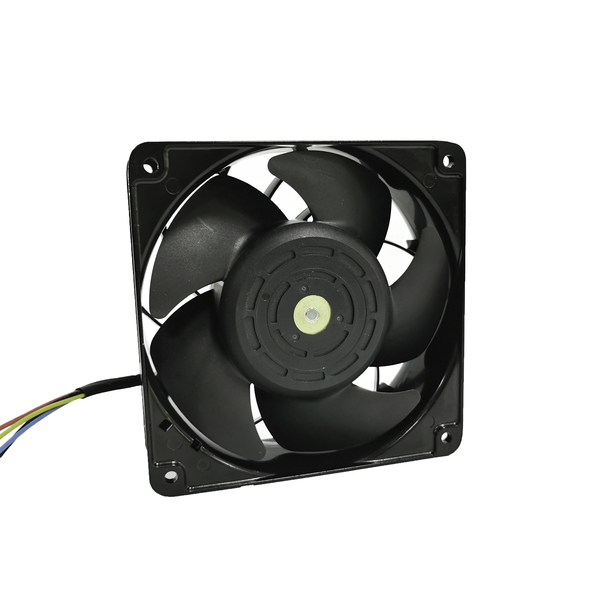

D12038D-TK

Size:120x120x38mm(4.72"x4.72"x1.50")



    D12038D-TK .pdf





    Model No. RATED
    VOLTAGE
    (V)    		 RATED
    CURRENT
    (A)    		 INPUT
    POWER
    (W)    		 SPEED
    (RPM)    		 MAX. AIR PRESSURE MAX. AIR FLOW NOISE dB(A)
    @1M    		 Sample Price QTY.
    inchH2O mmH2O CFM m3/min
    		D12038V12SSHD-TK 12 6 72 11000 2.88 73.1 289.2 8.18 75.3 52.00
    		D12038V12SHD-TK 12 4.8 57.6 10000 2.86 72.6 259.2 7.34 73.4 52.00
    		D12038V12SMD-TK 12 4 48 9000 2.83 71.9 239.2 7.34 73.4 52.00
    		D12038V12SLD-TK 12 2.8 33.6 8000 2.79 70.9 208 5.89 65.5 52.00
    		D12038V12HD-TK 12 2 24 7000 2.42 61.5 185.6 5.25 64.8 52.00
    		D12038V12MD-TK 12 1.5 18 6000 1.79 45.5 157.6 4.46 60.8 52.00
    		D12038V24SSHD-TK 24 3 72 11000 2.88 73.1 289.2 8.18 75.3 52.00
    		D12038V24SHD-TK 24 2.4 57.6 10000 2.86 72.6 259.2 7.34 73.4 52.00
    		D12038V24SMD-TK 24 2 48 9000 2.83 71.9 239.2 6.77 70.8 52.00
    		D12038V24SLD-TK 24 1.4 33.6 8000 2.79 70.9 208 5.89 65.5 52.00
    		D12038V24HD-TK 24 1 24 7000 2.42 61.5 185.6 5.25 64.8 52.00
    		D12038V24MD-TK 24 0.75 18 6000 1.79 45.5 157.6 4.46 60.8 52.00
    		D12038V48SSHD-TK 48 1.5 72 11000 2.88 73.1 289.2 8.18 75.3 52.00
    		D12038V48SHD-TK 48 1.2 57.6 10000 2.86 72.6 259.2 7.34 73.4 52.00
    		D12038V48SMD-TK 48 1 48 9000 2.83 71.9 239.2 6.77 70.8 52.00
    		D12038V48SLD-TK 48 0.7 33.6 8000 2.79 70.9 208 5.89 65.5 52.00
    		D12038V48HD-TK 48 0.5 24 7000 2.42 61.5 185.6 5.25 64.8 52.00
    		D12038V48MD-TK 48 0.375 18 6000 1.79 45.5 157.6 4.46 60.8 52.00

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price.





    Go to Inquiry List Add to Cart
