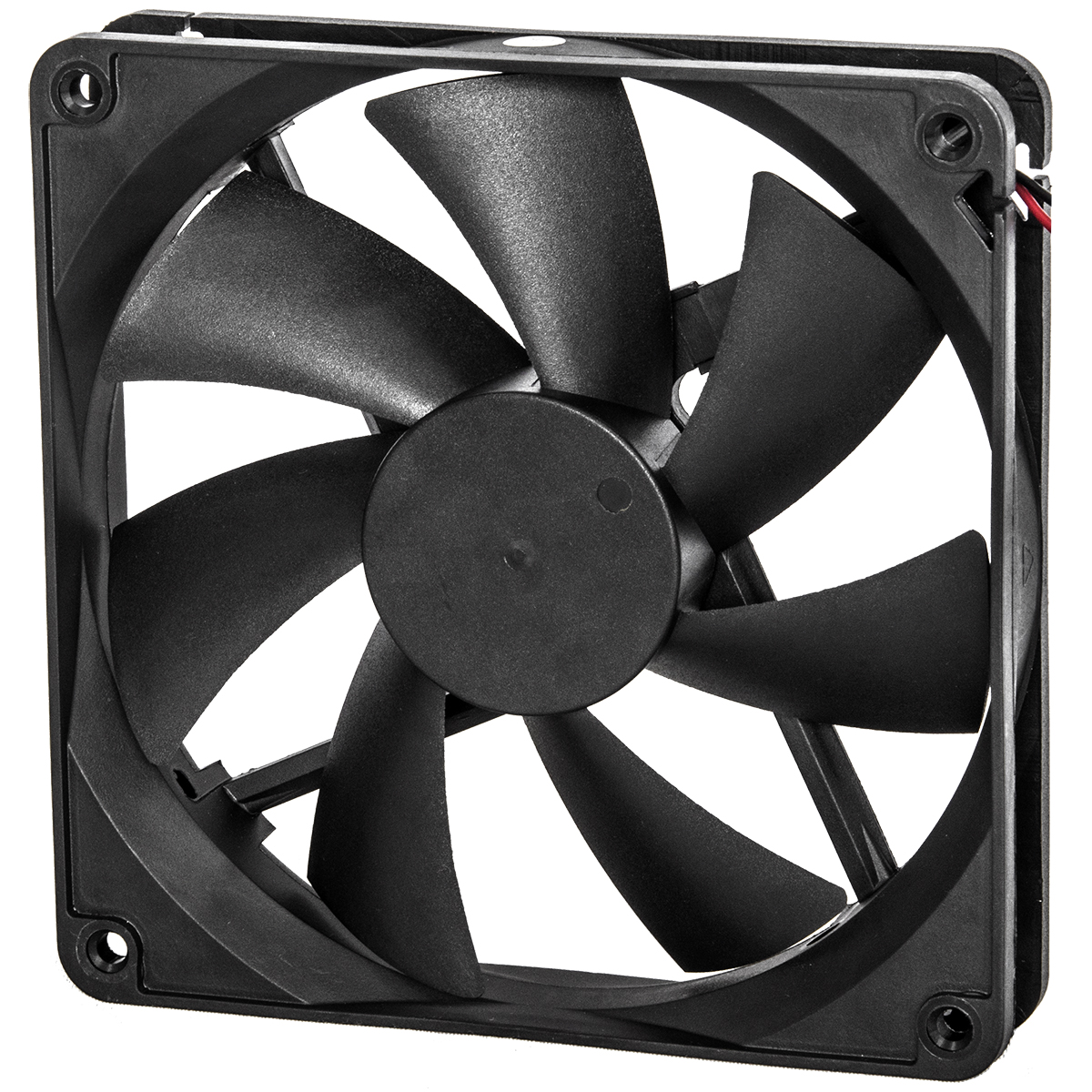

D13525-GF

Size:135x135x25mm(5.26"x5.26"x0.98")

Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	MAX. AIR PRESSURE		MAX. AIR FLOW		NOISE dB(A) @1M	Sample Price	QTY.
Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	inchH2O	mmH2O	CFM	m3/min	NOISE dB(A) @1M	Sample Price	QTY.
D13525V12SL-GF	12	0.50	6.00	2200	0.149	3.77	152.09	4.304	42.0	8.76
D13525V12H-GF	12	0.50	6.00	2000	0.114	2.90	127.60	3.611	38.6	8.76
D13525V12M-GF	12	0.45	5.40	1800	0.089	2.26	112.12	3.173	34.2	8.76
D13525V12L-GF	12	0.33	3.96	1500	0.067	1.70	95.18	2.694	29.1	8.76
D13525V12XL-GF	12	0.28	3.36	1200	0.038	0.96	75.70	2.142	23.7	8.76
D13525V12XXL-GF	12	0.20	2.40	900	0.028	0.72	58.35	1.651	17.9	8.76

*The price is only for sample. Each item price is negotiable if the quantity is large.
The currency is USD.
The delivery fee is not included in the unit price.
