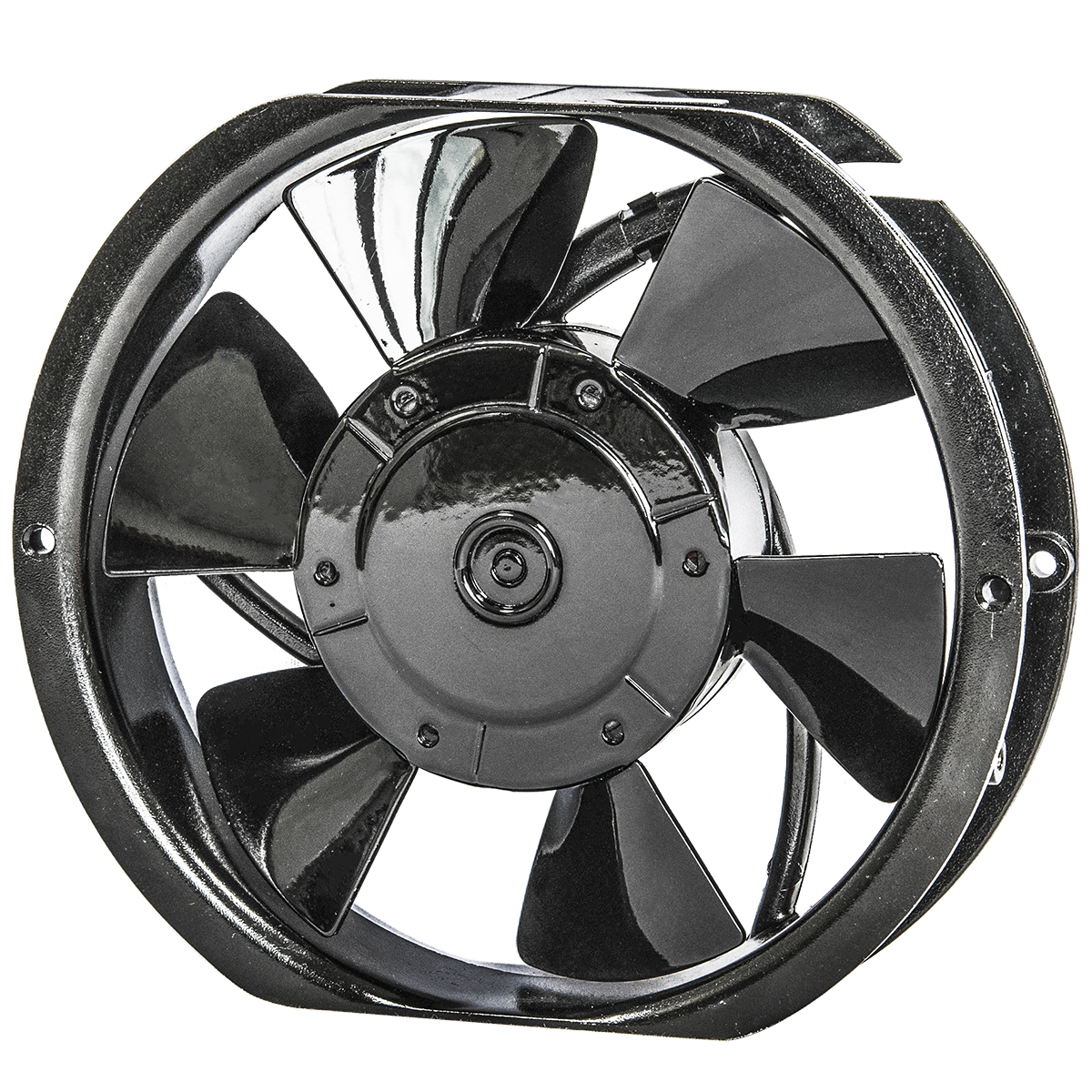

D17238M

Size:172x151x38mm(6.8"x5.9"x1.5")



    D17238M .pdf

    D17238M3D Object





    Model No. RATED
    VOLTAGE
    (V)    		 RATED
    CURRENT
    (A)    		 INPUT
    POWER
    (W)    		 SPEED
    (RPM)    		 MAX. AIR PRESSURE MAX. AIR FLOW NOISE dB(A)
    @1M    		 Sample Price QTY.
    inchH2O mmH2O CFM m3/min
    		D17238V12SLBM 12 3.33 39.96 4000 1.12 28.5 310 8.77 64 34.74
    		D17238V12HBM 12 2.34 28.08 3600 0.91 23.1 275 7.78 60 34.74
    		D17238V12MBM 12 1.59 19.08 3200 0.73 18.6 245 6.93 56 34.74
    		D17238V12LBM 12 1.1 13.2 2800 0.57 14.5 210 5.94 52 34.74
    		D17238V24SHBM 24 2.34 56.16 4800 1.54 39.2 360 10.19 72 34.74
    		D17238V24SMBM 24 1.91 45.84 4400 1.31 33.4 340 9.62 68 34.74
    		D17238V24SLBM 24 1.38 33.12 4000 1.12 28.5 310 8.77 64 34.74
    		D17238V24HBM 24 1.08 25.92 3600 0.91 23.1 275 7.78 60 34.74
    		D17238V24MBM 24 0.78 18.72 3200 0.73 18.6 245 6.93 56 34.74
    		D17238V24LBM 24 0.54 12.96 2800 0.57 14.5 210 5.94 52 34.74
    		D17238V48SHBM 48 1.13 54.24 4800 1.54 39.2 360 10.19 72 34.74
    		D17238V48SMBM 48 0.9 43.2 4400 1.31 33.4 340 9.62 68 34.74
    		D17238V48SLBM 48 0.68 32.64 4000 1.12 28.5 310 8.77 64 34.74
    		D17238V48HBM 48 0.52 24.96 3600 0.91 23.1 275 7.78 60 34.74
    		D17238V48MBM 48 0.37 17.76 3200 0.73 18.6 245 6.93 56 34.74
    		D17238V48LBM 48 0.28 13.44 2800 0.57 14.5 210 5.94 52 34.74

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price.
