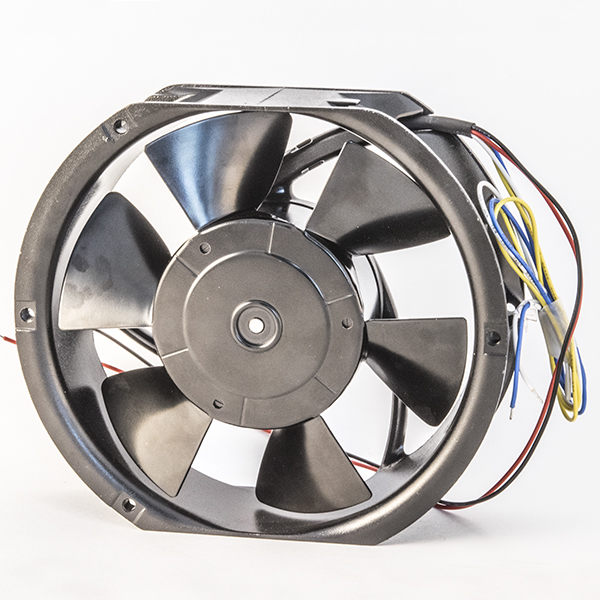

D17251M

Size:172x151x51mm(6.77"x5.94"x2")



    D17251M .pdf

    D17251M3D Object





    Model No. RATED
    VOLTAGE
    (V)    		 RATED
    CURRENT
    (A)    		 INPUT
    POWER
    (W)    		 SPEED
    (RPM)    		 MAX. AIR PRESSURE MAX. AIR FLOW NOISE dB(A)
    @1M    		 Sample Price QTY.
    inchH2O mmH2O CFM m3/min
    		D17251V12SLBM 12 3.40 40.8 4000 1.10 27.8 310 8.77 64 46.90
    		D17251V12HBM 12 2.37 28.44 3600 0.89 22.7 275 7.78 60 46.90
    		D17251V12MBM 12 1.65 19.8 3200 0.71 18.1 245 6.93 56 46.90
    		D17251V12LBM 12 1.08 12.96 2800 0.56 14.2 210 5.94 52 46.90
    		D17251V24SHBM 24 2.24 53.76 4800 1.49 37.8 360 10.19 72 46.90
    		D17251V24SMBM 24 1.88 45.12 4400 1.30 32.9 340 9.62 68 46.90
    		D17251V24SLBM 24 1.36 32.64 4000 1.10 27.8 310 8.77 64 46.90
    		D17251V24HBM 24 1.10 26.4 3600 0.89 22.7 275 7.78 60 46.90
    		D17251V24MBM 24 0.76 18.24 3200 0.71 18.1 245 6.93 56 46.90
    		D17251V24LBM 24 0.54 12.96 2800 0.56 14.2 210 5.94 52 46.90
    		D17251V48SHBM 48 1.12 53.76 4800 1.49 37.8 360 10.19 72 37.80
    		D17251V48SMBM 48 0.94 45.12 4400 1.30 32.9 340 9.62 68 37.80
    		D17251V48SLBM 48 0.68 32.64 4000 1.10 27.8 310 8.77 64 37.80
    		D17251V48HBM 48 0.53 25.44 3600 0.89 22.7 275 7.78 60 37.80
    		D17251V48MBM 48 0.38 18.24 3200 0.71 18.1 245 6.93 56 37.80
    		D17251V48LBM 48 0.27 12.96 2800 0.56 14.2 210 5.94 52 37.80

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price.
