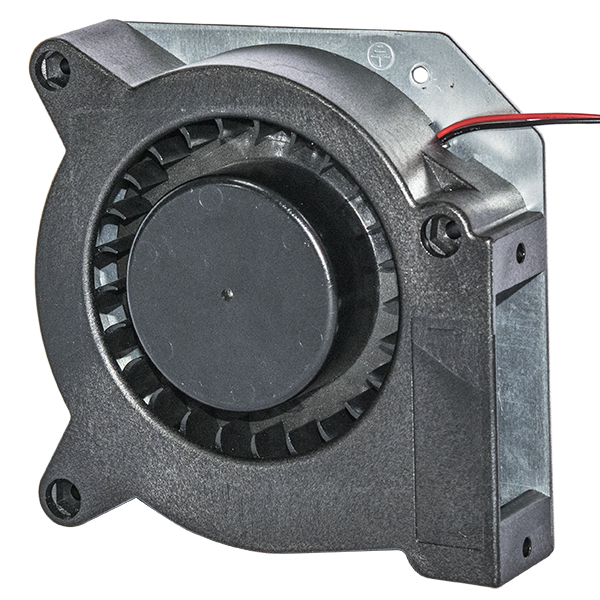

DB12137

Size:121X121X37mm(4.76"X4.76"X1.46")

DB12137 .pdf

DB121373D Object

Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	MAX. AIR PRESSURE		MAX. AIR FLOW		NOISE dB(A) @1M	Sample Price	QTY.
Model No.	RATED VOLTAGE (V)	RATED CURRENT (A)	INPUT POWER (W)	SPEED (RPM)	inchH2O	mmH2O	CFM	m3/min	NOISE dB(A) @1M	Sample Price	QTY.
DB12137V12H	12	0.95	11.5	2800	0.75	19.05	26	0.73	55	28.26
DB12137V12M	12	0.63	7.5	2500	0.52	13.21	22	0.62	52	28.26
DB12137V24H	24	0.42	10.0	2800	0.75	19.05	26	0.73	55	28.26
DB12137V24M	24	0.31	7.5	2500	0.52	13.21	22	0.62	52	28.26
DB12137V48H	48	0.23	11.0	2800	0.75	19.05	26	0.73	55	28.26
DB12137V48M	48	0.16	7.7	2500	0.52	13.21	22	0.62	52	28.26

*The price is only for sample. Each item price is negotiable if the quantity is large.
The currency is USD.
The delivery fee is not included in the unit price.

Go to Inquiry List Add to Cart
