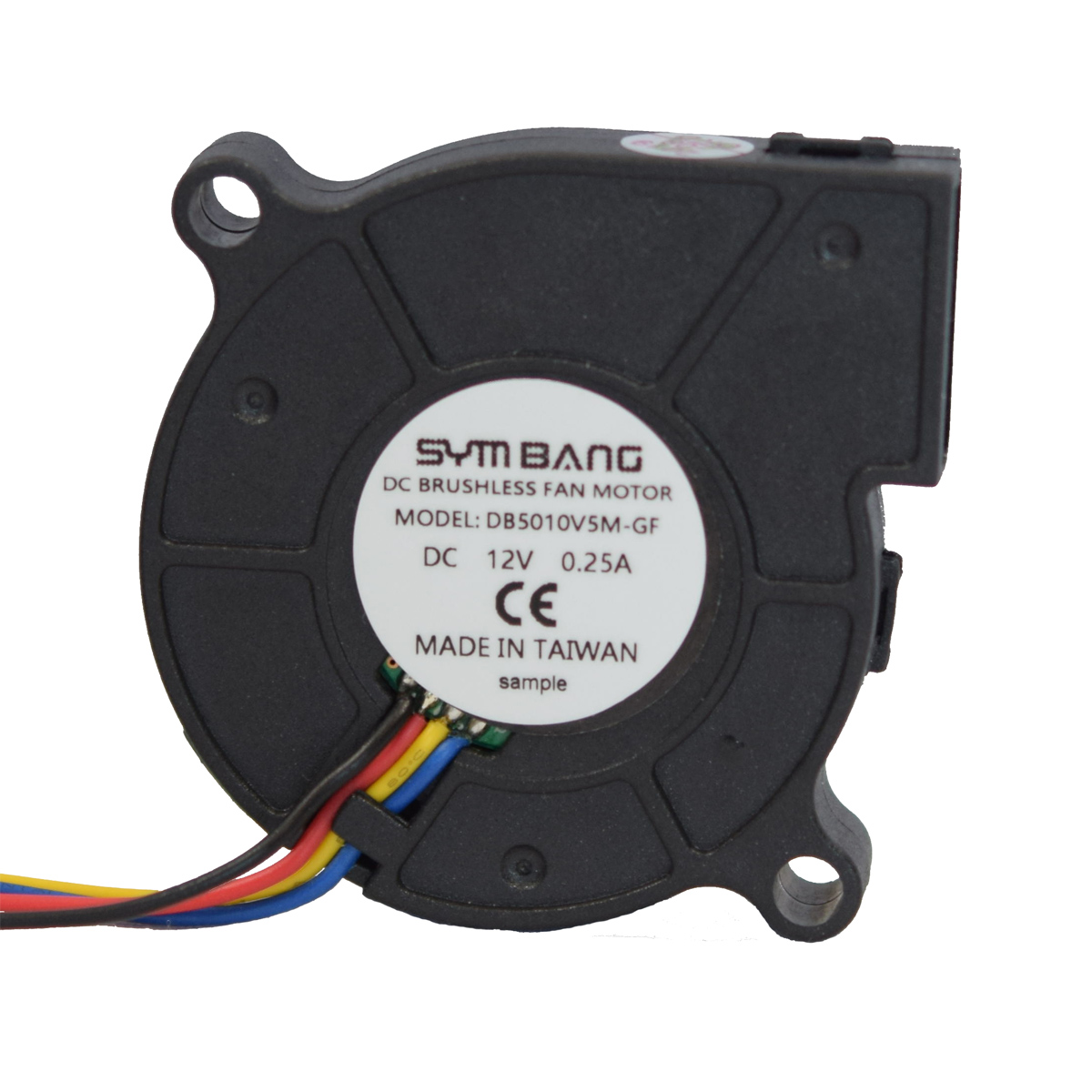

DB5010-GF

Size:50x50x10mm(1.95"x1.95"x0.39")



    DB5010-GF .pdf

    DB5010-GF3D Object





    Model No. RATED
    VOLTAGE
    (V)    		 RATED
    CURRENT
    (A)    		 INPUT
    POWER
    (W)    		 SPEED
    (RPM)    		 MAX. AIR PRESSURE MAX. AIR FLOW NOISE dB(A)
    @1M    		 QTY.
    inchH2O mmH2O CFM m3/min
    		DB5010V5SM-GF 5 0.50 2.50 7000 0.656 16.66 3.26 0.092 49.7
    		DB5010V5SL-GF 5 0.40 2.00 6500 0.579 14.69 3.05 0.086 47.3
    		DB5010V5H-GF 5 0.30 1.50 5500 0.428 10.87 2.55 0.072 42.2
    		DB5010V5M-GF 5 0.25 1.25 4500 0.295 7.48 2.07 0.059 35.3
    		DB5010V5L-GF 5 0.20 1.00 3500 0.176 4.47 1.57 0.044 26.8
    		DB5010V12SM-GF 12 0.35 4.20 7000 0.656 16.66 3.26 0.092 49.7
    		DB5010V12SL-GF 12 0.30 3.60 6500 0.579 14.69 3.05 0.086 47.3
    		DB5010V12H-GF 12 0.25 3.00 5500 0.428 10.87 2.55 0.072 42.2
    		DB5010V12M-GF 12 0.20 2.40 4500 0.295 7.48 2.07 0.059 35.3
    		DB5010V12L-GF 12 0.15 1.80 3500 0.176 4.47 1.57 0.044 26.8

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price.
